VENEER PEELING MACHINE

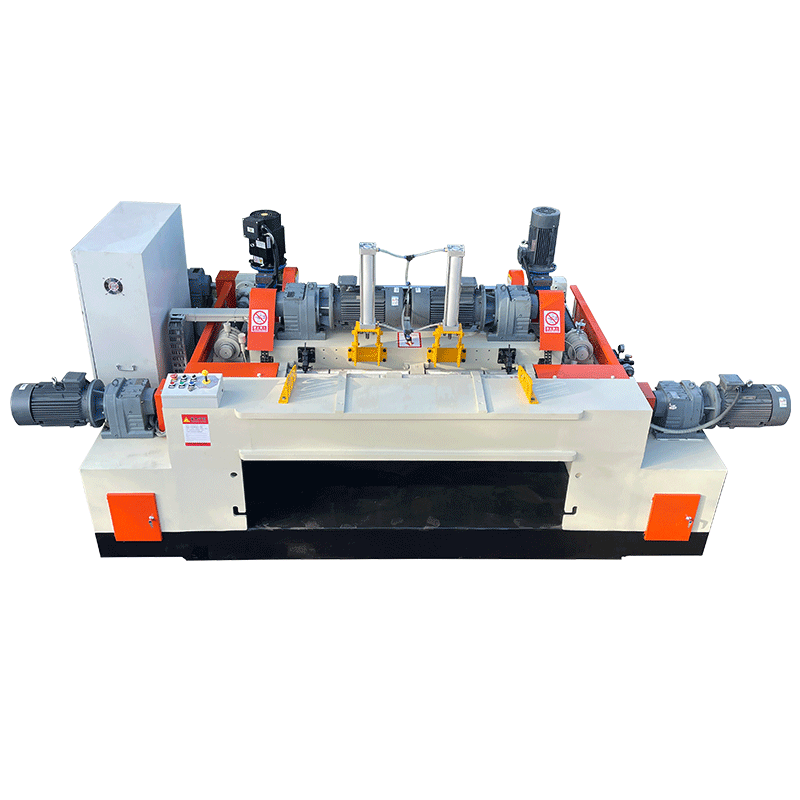

Product Name: 5ft veneer peeling machine with hydraulic knife
Date: 2023-03-14 16:23:11
Number of clicks: 187
About Us:

  Shandong XinWanDa Machinery Manufacture Factory (W.D.WOODSEN MACHINERY)is a professional manufacturer in producing and selling wood based panel machinery. Our main products are log debarker, veneer peeling machine, veneer dryer, glue m...






Detailed introduction



1.原木长度Length of peeler log : 1400mm

2.原木直径Diameter of peeler log : Maximum 500mm

3.旋切厚度Rotary cutting thickness range: 0.5mm—5mm

4.线速度Linear speed of host machine: 45m --90m/min Adjustable speed 可调

5.刀长度Length of knife : 1500mm

6.刀品牌Brand of knives -- SENGANG

7.双辊电机Double roller power :   7.5kw*2  TOP BRAND

8.单辊电机Single roller Motor :   7.5kw*2   TOP BRAND

9.进给电机Feeding motor :    11kw    servo motor

10.铡刀功率Clipper motor` :    2.2kw   servo motor

11.传送功率Conveyor motor :   2.2kw   TOP BRAND

12.尺寸Dimension :   4400x2300x2100mm

13.重量Weight : About 7200kg

All reducer are R helical gear;China’s top brand bearings. This machine contains remote control system by connecting the internet.
