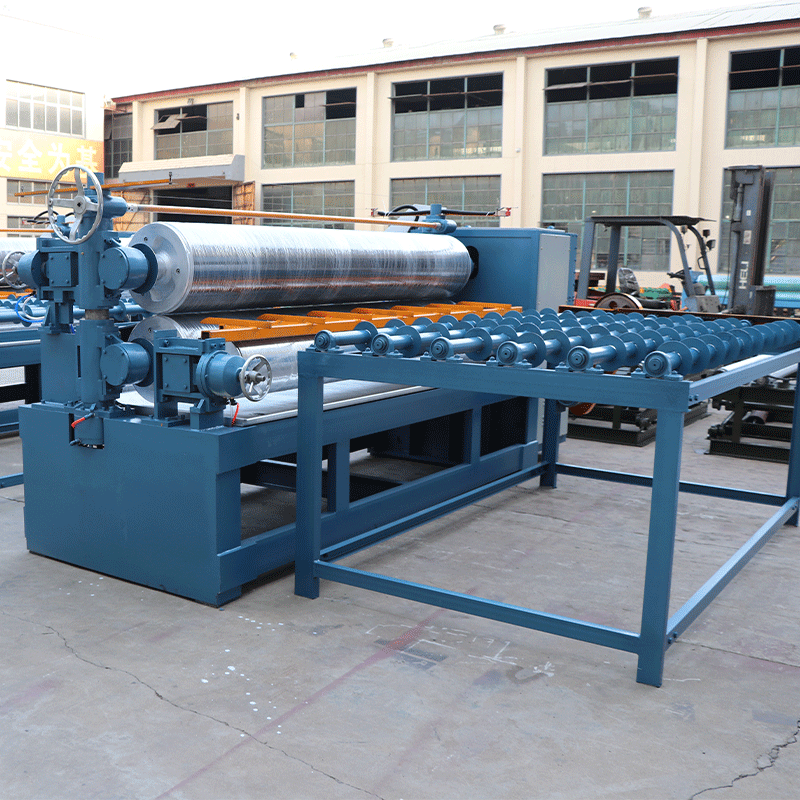

Glue spreader

1 . It is used in the face veneer pressing of plywood,block board,and bamboo plywood production.

2. Structure is strong and durable, easy to maintain, glue uniformly, high efficiency, saves glue and cost.

3. It has urgent stop protector device

1.辊长Length of rollers: 2700 mm

2.辊直径 Dia.of rollers : 410mm

3.胶厚 Thickness of the glue: 16 mm

4.速度 Speed of the rollers :31 M/min

5.电机 Motor power :9kw

6.胶辊类型 Type of the glue:  HEIDINGQING top brand

7.工作宽度 Working width: mm 2600mm

8.工作厚度 Working thickness: mm 25

9.机器尺寸  Machine size(LXWXH) mm 4300mmx1500mmx1900mm

10. 变频调速  Speed mode -- Frequency

11 . 重量  Weight About 5500kg

本机采用加大胶辊和高质量胶，机体壮实

This machine use large roller(φ410mm) and

best glue on it. The structure is more stronger
